1 Configuration List

Part	Description
EM3588	EM3588 SBC, built-in WIFI&BT module, without RTC battery and panel
Power adapter	12V/3A
USB Type-C cable	Used to download
Serial adapter module	USB-to-UART
Ethernet cable	1.5M Ethernet crossover cable
WiFi Antenna	Flexible uFL 2.4GHz antenna
U-disk	User manuals, Schematics, Images, etc.

2 Accessories (optional)

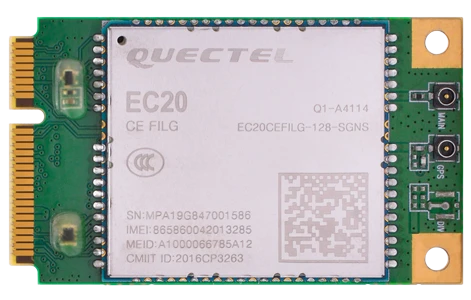

Wireless

• Model: EC20

• Supply voltage: 3.3V~ 3.6V, Typical values: 3.3V

• Working frequency band: TDD-LTE B38/B40/B41, FDD-LTE B1/B3/B8, WCDMA B1/B8, TD-SCDMA B34/B39, GSM 900/1800

• Antenna interface: 3 (Main/Diversity/GNSS)

• USIM: 1.8V/3V

• Digital voice: 1 digital voice interface(optional)

• Package: Mini PCIe form factor

• Dimensions: 51.0mm x 30.0mm x 4.9 mm

4G module

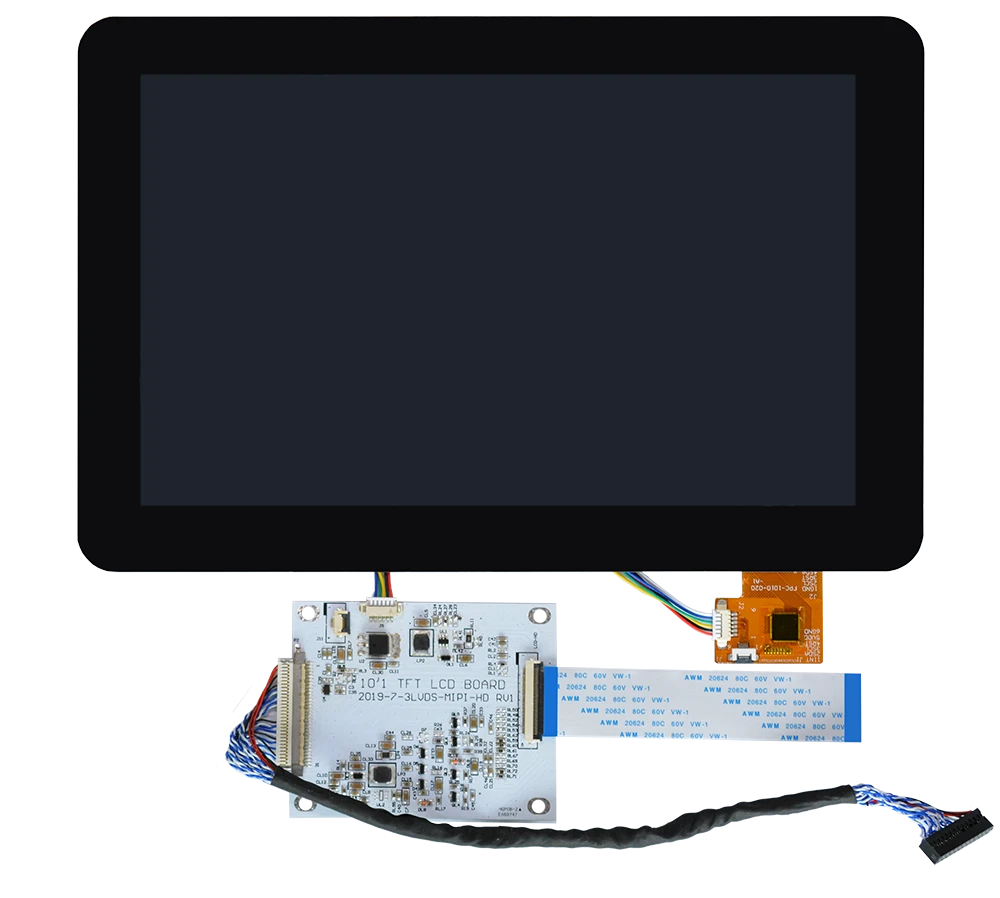

Panel

Item	Parameter
Model	PY101BDGS40M25F106
Display interface	MIPI
Resolution	800 x 1280
Number of colors	16.7M
Display mode	Normally Black
Pixel arrangement	RGB Vertical stripe

10.1-inch MIPI LCD

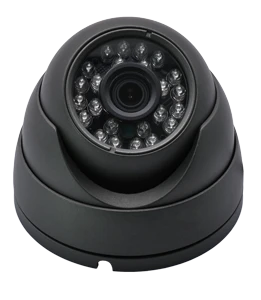

Camera

Item	Parameter
Model	SW-MA2024HP
Sensor	1/3” 2 Mega Pixels CMOS
Power supply	DC12V±10%
Signal	PAL/NTSC
Interface	BNC
Pixels	2 megapixel (1920 x 1080)

AHD Camera

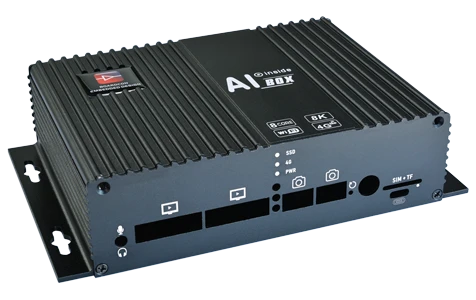

Metal Case

• Model: EM3588 Metal Case

• Material: Aluminum Alloy

• Surface Finish: Anodized

• Cooling Type: Anodized

• Dimensions (W x D x H): 161 x 116 x 45.5 mm

Metal Case
