3. Flash Images

❶ Unzip RKDevTool.rar on Windows. Open RKDevTool\RKDevTool_Release\RKDevTool.exe.

open RKDevTool

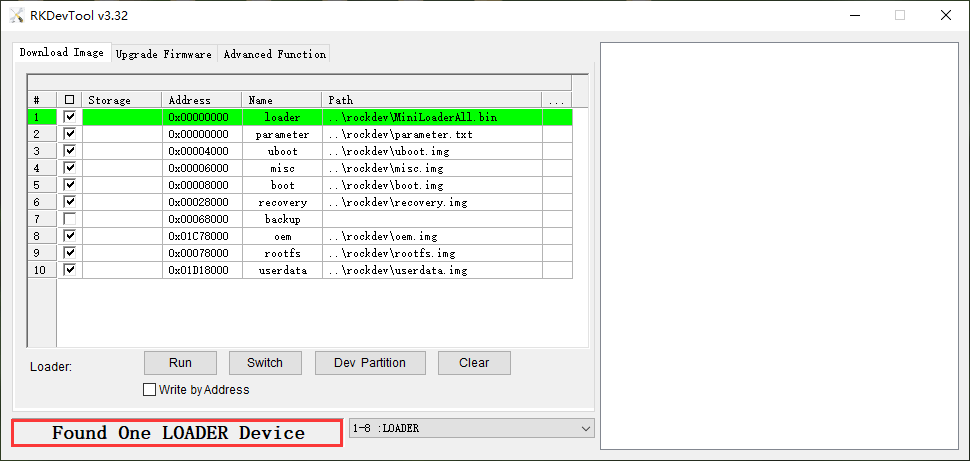

❷ Enter Loader mode

_images/Found_LOADER_Device_Linux.png

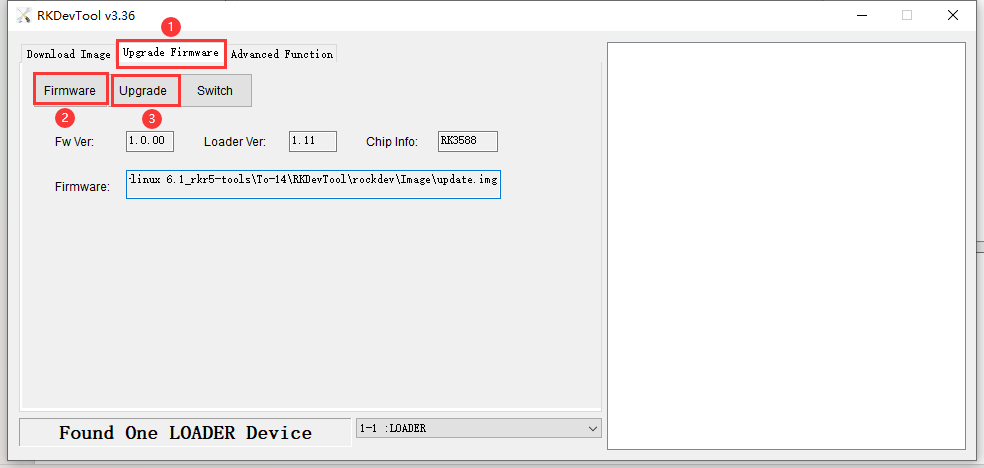

❸ Click Upgrade Firmware -> Firmware, select update.img. Click Upgrade to flash.

_images/Upgrade_Linux.png

User can also update the firmware separately.

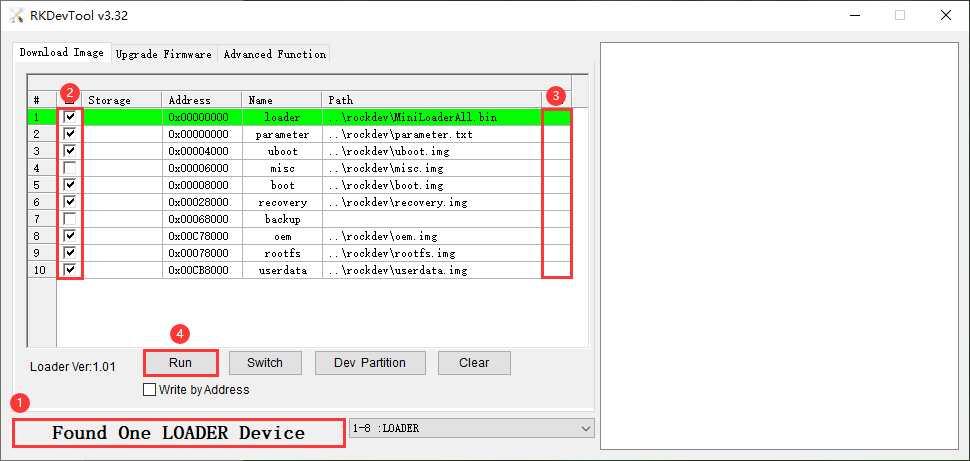

❶ Enter Loader mode

❷ Check the partitions to be flashed, multiple partitions can be selected.

❸ Ensure the image file path is correct. If necessary, click the blank cell next to the path to reselect it.

❹ Click Run to flash the image.

_images/Linux_update_firmware_separately.png

After the flashing is complete, the board will automatically reboot.
