2. Quick Setup

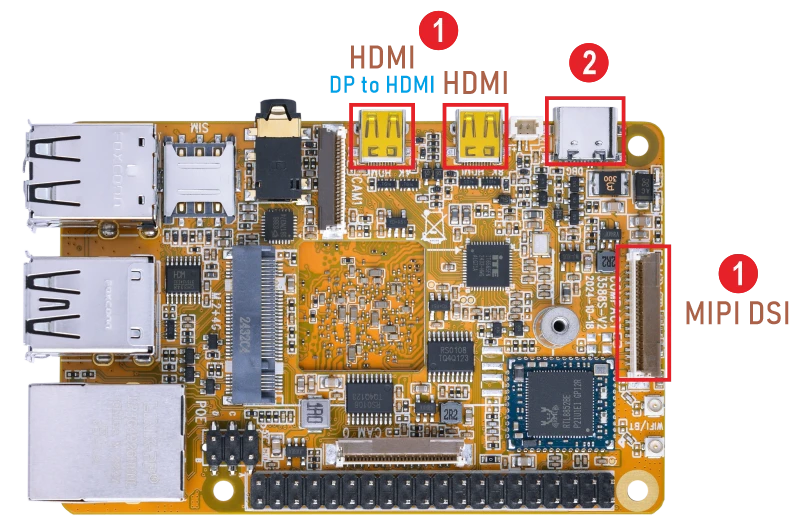

❶ Connect the Compact3588S and monitor with an HDMI cable(or connect the MIPI LCD to the board).

❷ On the host PC, start a terminal emulation program (such as SecureCRT) with the following serial port settings:

BaudRate	Data Bits	Stop Bits	Parity	Flow Control
1500000	8	1	None	None

❸ Connect the USB-C cable between host PC and board’s USB-C port, and the Compact3588S will turn on and boot into the system.
