1 Configuration List
Part |
Description |
|---|---|
Compact3588S |
Compact3588S SBC, built-in WIFI&BT module, without RTC battery and panel |
USB Type-A cable |
Used to download |
Ethernet cable |
1.5M Ethernet crossover cable |
WiFi Antenna |
Flexible uFL 2.4GHz antenna |
U-disk |
User manuals, Schematics, Images, etc. |
2 Accessories (optional)

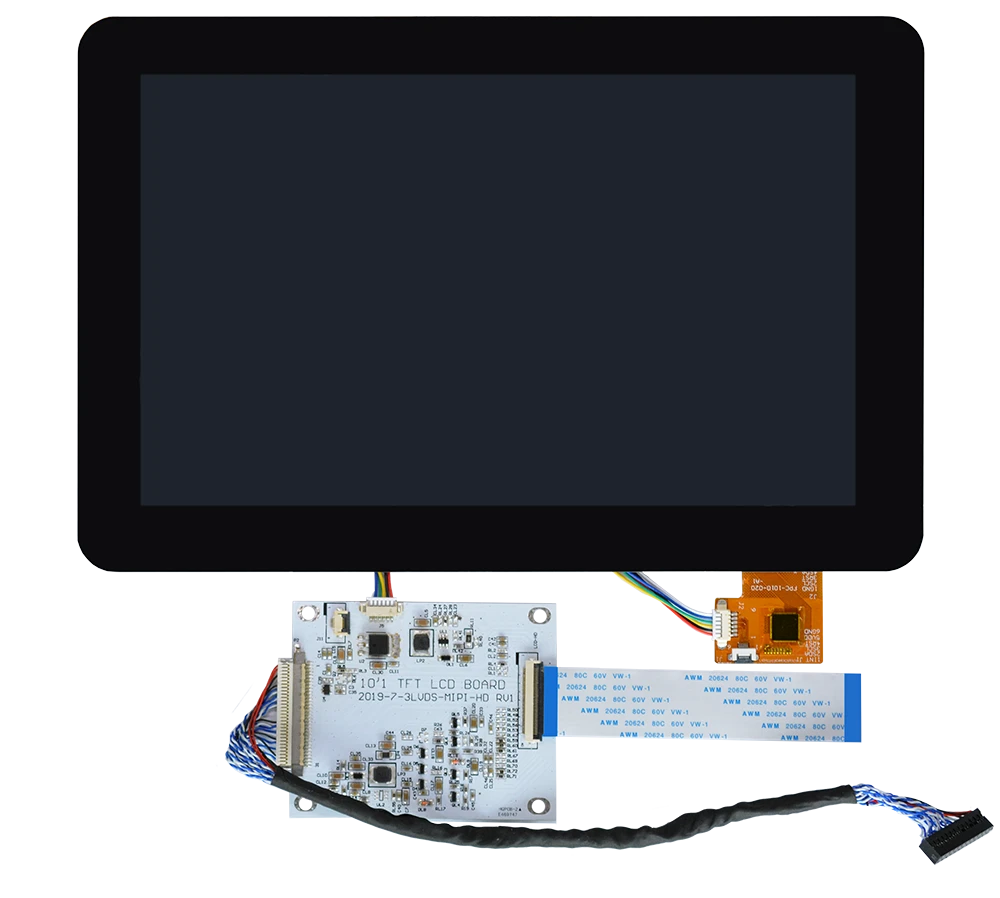

Panel
Item |
Parameter |
|---|---|
Model |
K101-IM2KYL02-L3 |
Display interface |
MIPI |
Resolution |
800 x 1280 |
Number of colors |
16.7M |
Display mode |
Normally Black |
Pixel arrangement |
RGB Vertical stripe |
Camera
Item |
Parameter |
|---|---|
Model |

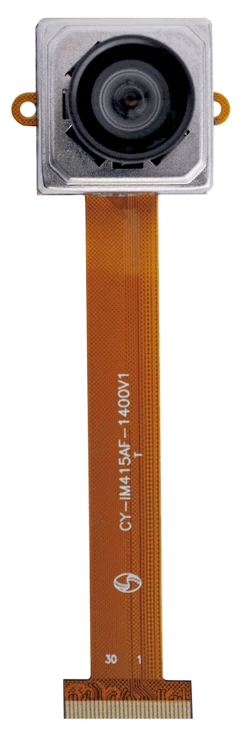

DC-IM415AF-1400V1 |
Power supply |
analog: 2.9V, digital: 1.1V, I/O: 1.8V |
Output format |
RAW10/RAW12 |
Interface |
MIPI |
Pixels |
8.29 megapixel (3840 x 2160) |
Model: OV13850-G04A
Power supply: analog: 2.6 ~ 3.0V (2.8V nominal), core: 1.14 ~ 1.26V (1.2V nominal), I/O: 1.7 ~ 3.0V (1.8V or 2.8V nominal)
Output format: 10-bit RGB RAW
Interface: MIPI
Pixels: 13.2MP(4224x3136) at 30fps
OV13850
Wireless

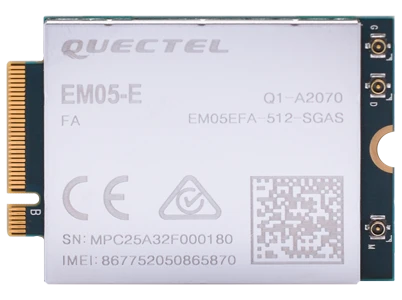

Model: EM05-E
Supply voltage: 3.135V ~ 4.4V, typical values: 3.3V
Working frequency band: LTE-FDD B1/3/7/8/20/28, LTE-TDD B38/41, WCDMA B1/8
Antenna interface: Main, Rx-diversity, GNSS
USIM: 1.8V/3.0V
Digital voice: x 1 digital voice interface(optional)
Package: M.2 Type 3042-S3-B
Dimensions: 42.0mm × 30.0mm × 2.3mm
