IdeaT527

* Processor: Allwinner T527. Octa-core ARM Cortex-A55, up to 1.8GHz
* NPU(optional): 2 TOPS
* RAM: 2GB
* Storage: 32GB

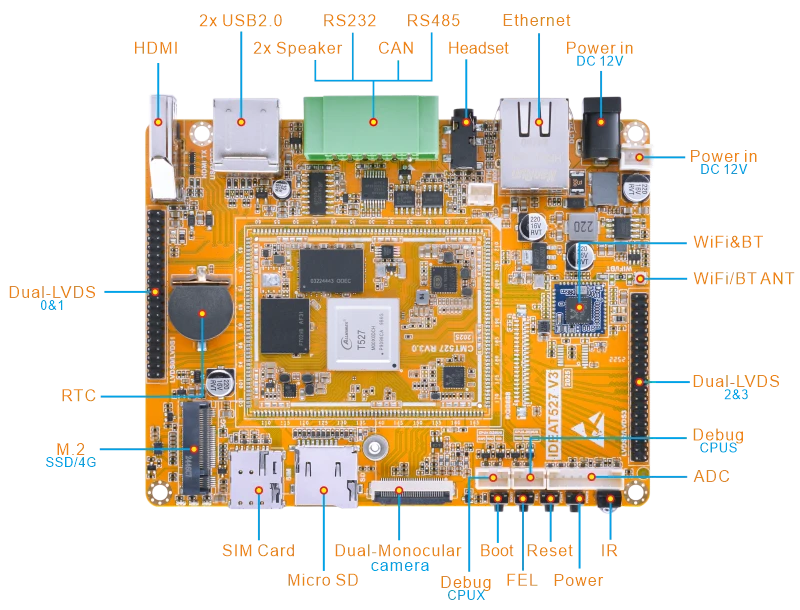

* Interfaces: 2x USB2.0, 3x UART, CAN, RS485, Dual-LVDS, HDMI, RGB, Camera, Ethernet, M.2, Micro SD, Audio I/O, ADC, etc.
* Operating system: Android 13, Linux 5.15
* Dimensions: 120 x 92 mm
* Expansion Module: WiFi, 4G, 10.1" LCD

Overview
Hardware
Software
Datasheet
Price&Order
FAQ

Boardcon IdeaT527 is an advanced single board computer powered by Allwinner T527 octa-core Arm Cortex-A55 SoC with 2 TOPS AI accelerator(optional), ARM Mali-G57 MC1 GPU, 600MHz HIFI4 Audio DSP and up to 4GB memory and 128GB eMMC storage.
This T527 platform is equipped with Gigabit Ethernet, CAN, WiFi/Bluetooth, M.2 for SSD/4G LTE, and dual-Monocular, supports 2x dual-LVDS video outputs.
The extensive connectivity options and high-definition video outputs make IdeaT527 ideal for multimedia applications, and the T527's industrial-grade design and stability also make it suitable for various industrial control scenarios.

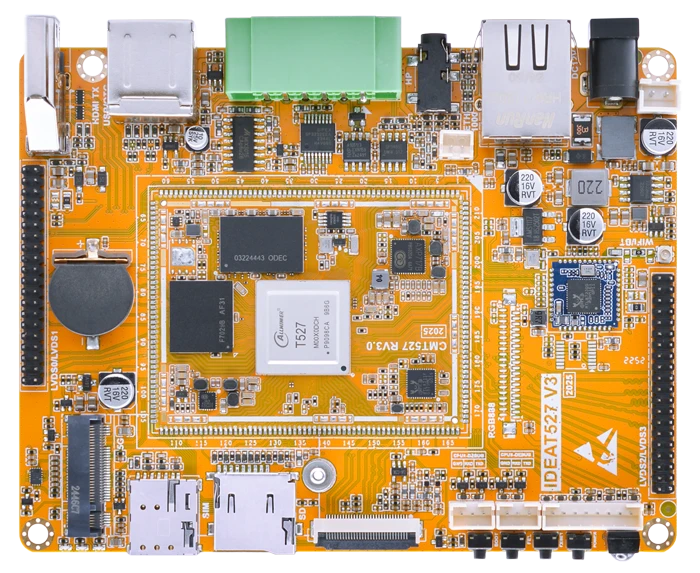

Allwinner_t527_Single_board_computer-IdeaT527

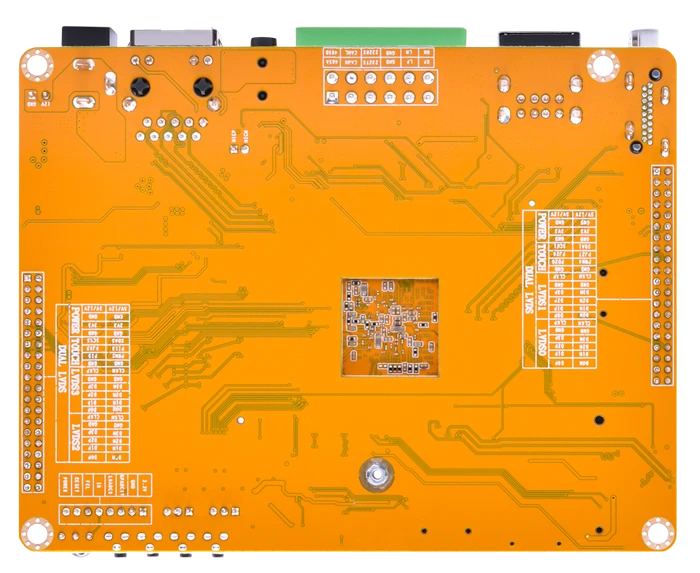

Allwinner_t527_SBC-IdeaT527

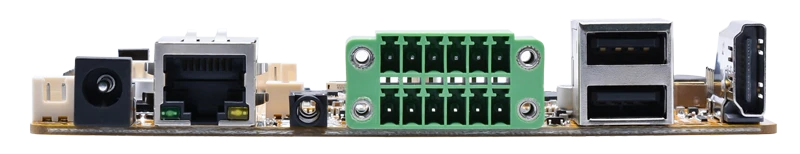

IdeaT527-V3_angle

Specifications
SoC	Allwinner T527. Octa-core ARM Cortex-A55, up to 1.8GHz RISC-V core @ 200MHz
NPU(optional)	2 TOPS
GPU	ARM Mali-G57 MC1 GPU with support for OpenGL ES 3.2/2.0/1.1, Vulkan 1.1/1.2/1.3, OpenCL 2.2
Memory	2GB (up to 4GB)
Storage	32GB eMMC flash (up to 128GB) MicroSD card slot M.2 socket (optional. Multiplexed with 4G module)
Power Supply	12V/3A DC input jack
USB	1x USB2.0 device/Host(USB0), 1x USB2.0 Host(USB2)
Connectivity	1x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller 2.4G WiFi(802.11b/g/n) with Bluetooth 4.2 M.2 socket with Nano SIM card port to support 4G LTE Module
Serial Port	2x Serial port for debug 1x RS232 1x RS485
Display	2x Dual-LVDS (0&1, 2&3), 40-pin header 1x RGB (multiplexed with LVDS 2&3), 40-pin FPC connector 1x HDMI 2.0
Audio	1x 3.5mm audio jack for Audio in/out 2x Speaker
Camera	Dual-Monocular, FPC connector
Keys	Power, Reset, FEL
Other features	RTC with battery connector, IR, ADC, CAN
Dimensions	Based board - 120 x 92 mm; CPU module - 56.0 x 42.5 mm

OS	Item	Feature	Description
Android 13	Boot	U-Boot 2018.07	u-boot-sun55iw3p1.bin
	Kernel	Version	Linux 5.15.119
	Drivers	eMMC	eMMC5.1
		HDMI OUT	Support 4K, 1080P, 720P, 480P resolution
		Audio	Headphone input/ output, MIC, 2x Speaker
		SD card	Micro SD card
		USB Host	USB2.0 Host (either USB or SSD)
		USB OTG	USB2.0 Host default
		Ethernet	10/100/1000 Mbps Ethernet
		WiFi	1T1R 802.11 b/g/n (RTL8723DS)
		Bluetooth	Bluetooth 4.2 (RTL8723DS)
		Serial Port	Debug
		4G	EM-05
		LVDS *2	10.1-inch LVDS LCD with touch screen or Dual-LVDS
		RS485	Support
		RTC	Support
		CAN	Support
		IR	PWM IR
		SSD	NVME2.0 SSD
		Cross-compiler Environment	Ubuntu 22.04/openjdk11.0.13
	Debug Tools	SecureCRT, PhoenixSuit.exe, ADB

OS	Item	Feature	Description
Linux5.15	Bootloader	U-Boot 2018.07	u-boot-sun55iw3p1.bin
		Boot mode	Boot from eMMC
		Download	Download via USB OTG
	Kernel	Version	Linux 5.15.147
	Drivers	eMMC	eMMC 5.1
		Audio	Headphone input/ output, MIC, 2x Speaker
		SD card	Micro SD card
		USB Host	USB2.0 Host
		USB OTG	USB2.0 Host default
		Ethernet	10/100/1000 Mbps Ethernet
		WiFi	1T1R 802.11 b/g/n (RTL8723DS)
		Bluetooth	Bluetooth 4.2 (RTL8723DS)
		Serial Port	Debug serial
		4G	EM05
		LVDS *2	10.1-inch LVDS LCD with touch screen or Dual-LVDS
		RS485	Support
		RTC	Support
		CAN	Support
		IR	PWM IR
		SSD	NVME2.0 SSD
		Cross-compiler Environment	Ubuntu 22.04
	Debug Tools	SecureCRT, PhoenixSuit.exe, ADB

Expansion Module	Module Detail	Android	Linux
4G	Quectel EM05 LTE Module. M.2 (NGFF) form factor	√	√
WiFi&Bluetooth	BL-M8723DS1 module. 2.4G WiFi + Bluetooth 4.2	√	√
10.1-inch LVDS LCD	10.1-inch Capacitive Touch Screen, 1280 x 800	√	√
