Tiny1126B

* Processor: Rockchip RV1126B. Quad-core Cortex-A53 @ 1.6GHz
* NPU: 3 TOPS
* RAM: 2GB/4GB
* Storage: 8GB/16GB/32GB/64GB/128GB/256GB
* Pin out: 3x UART, USB2.0 Host, USB3.0 DRD, MIPI DSI, RGB LCD, 2x MIPI CSI, 2x Ethernet, 2x SDMMC, SPI, I2C, CAN, ADC, GPIO, etc
* Operating System: Debian 12, Buildroot
* Dimensions: 34 x 30 mm
* Connectors: 2x 100-pin, 0.4mm pitch
* Operating Temperature: -20° to + 85° C

Overview
Hardware
Software
Datasheet
Price&Order
FAQ

The Tiny1126B is a highly compact System on Module (SOM) engineered for edge vision and AI applications. The Rockchip RV1126B processor integrates a quad-core Arm Cortex-A53 CPU and a dedicated NPU delivering up to 3 TOPS, enabling efficient acceleration of TensorFlow, PyTorch, Caffe, and MXNet models.
The SOM features a 12MP hardware ISP and an 8MP AI ISP, supporting HDR, 3DNR, fisheye correction, and AI‑adaptive day/night imaging. Advanced capabilities include AOV 3.0 for low‑power audio event detection and 6‑DOF stabilization. The smart encoding engine reduces bitrate by 50%, while hardware security (SM2/SM3/SM4) with TrustZone ensures robust data protection. H.265/H.264 multi‑stream encoding and 4Kp30 decoding are supported.
Ideal for smart surveillance, industrial vision, robotics, and automotive edge AI, the Tiny1126B delivers powerful vision processing in a miniature footprint.

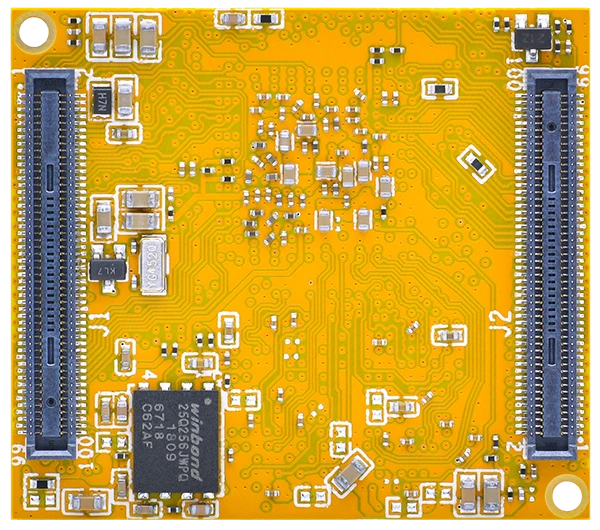

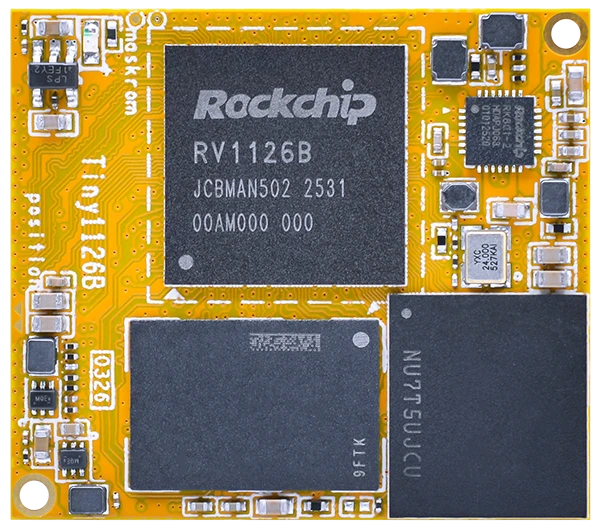

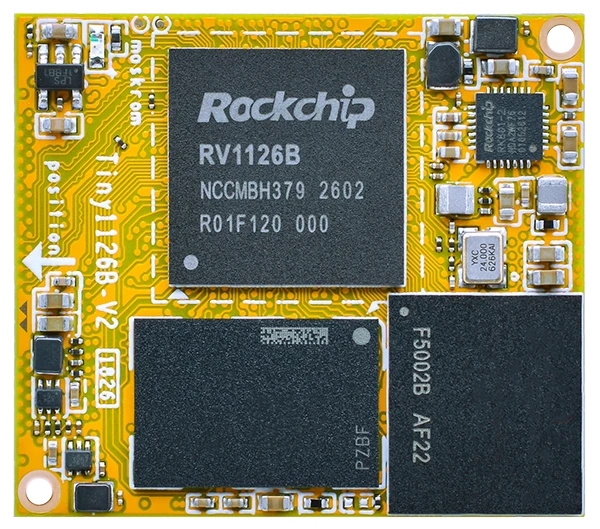

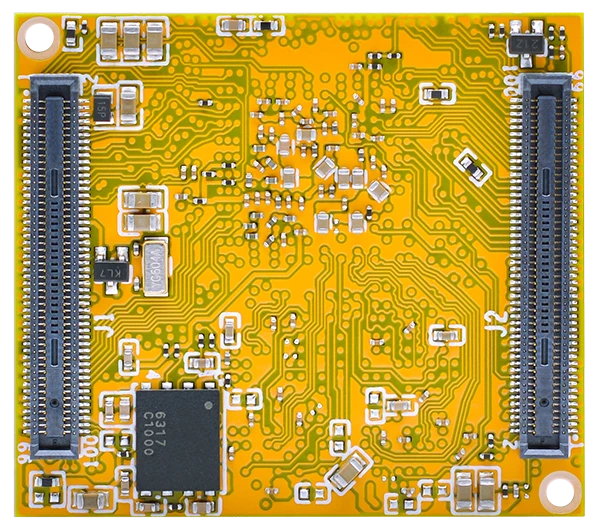

Tiny1126B RV1126B SOM Tiny1126B Rochchip rv1126b system-on-module

Specifications
SoC	Rockchip RV1126B Quad-core Cortex-A53 @ 1.6GHz
NPU	3 TOPS for INT8. Support INT4, INT8, INT16, FP16
Memory	2GB/4GB LPDDR4
Storage	8GB/16GB/32GB/64GB/128GB/256GB eMMC
Supply Voltage	DC 5V
Pin out	2x MIPI CSI, USB2.0 Host, USB3.0 DRD(Dual-Role Device), 2x SDMMC, 2x MIC, DSM, 3x UART, 2x SPI, 3x I2C, GMAC, 10/100M FEPHY, MIPI DSI, RGB LCD, 2x CAN, 7x SARADC IN, GPIO, etc
PCB Layer	8
Dimensions	34 x 30 mm
Weight	5 gram
Connectors	2x 100-pin, 0.4mm pitch Board-to-Board Connectors (Plug)
Application	AI cameras, smart door locks, inspection cameras, cleaning/logistics robots, DMS/BSD systems, smart displays, AI development boards

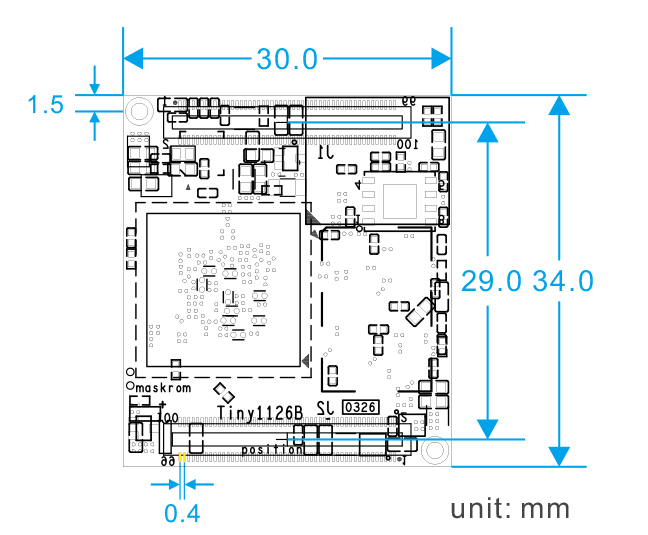

PCB Dimension

Tiny1126B_PCB_dimension

Pin Definition

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	VCC5V0_SYS	2	VCC5V0_SYS	1	ETH_LED_ACT	2	GND
3	VCC5V0_SYS	4	VCC5V0_SYS	3	ETH_CLK_25M_OUT_M0	4	ETH_TXD1_M0
5	VCC5V0_SYS	6	VCC5V0_SYS	5	VO_LCDC_D17_3V3	6	ETH_RXCTL_M0
7	GND	8	GND	7	VO_LCDC_D18_3V3	8	ETH_TXD3_M0
9	ETH_PPS_CLK_M0	10	SDMMC0_CLK	9	VO_LCDC_D23_3V3	10	ETH_TXD0_M0
11	PMIC_PWRON	12	SDMMC0_D0	11	VO_LCDC_D22_3V3	12	ETH_TXD2_M0
13	ETH_PTP_REFCLK_M0	14	SDMMC0_D1	13	VO_LCDC_D21_3V3	14	ETH_MDIO_M0
15	GPIO6_B6_D	16	SDMMC0_CMD	15	VO_LCDC_D11_3V3	16	ETH_MDC_M0
17	GPIO7_A1_D	18	SDMMC0_D2	17	VO_LCDC_D00_3V3	18	ETH_LED_SPD
19	GPIO7_A0_D	20	SDMMC0_D3	19	VO_LCDC_D01_3V3	20	ETH_MCLK_M0
21	MIPI_CSI_RX1_D0N	22	GND	21	VO_LCDC_D02_3V3	22	GND
23	MIPI_CSI_RX1_D0P	24	RESET	23	VO_LCDC_D03_3V3	24	ETH_RXD3_M0
25	MIPI_CSI_RX1_D1N	26	MIC0_N	25	VO_LCDC_D04_3V3	26	ETH_RXD2_M0
27	MIPI_CSI_RX1_D1P	28	MIC0_P	27	VO_LCDC_D05_3V3	28	ETH_PPSTRIG_M0
29	MIPI_CSI_RX1_CLK0N	30	MIC1_N	29	VO_LCDC_D19_3V3	30	ETH_RXD0_M0
31	MIPI_CSI_RX1_CLK0P	32	MIC1_P	31	VO_LCDC_D20_3V3	32	ETH_RXD1_M0
33	GND	34	MIPI_CSI_RX0_CLK1N	33	VO_LCDC_DEN_3V3	34	ETH_TXCTL_M0
35	MIPI_CSI_RX1_D3N	36	MIPI_CSI_RX0_CLK1P	35	VO_LCDC_HSYNC_3V3	36	GND
37	MIPI_CSI_RX1_D3P	38	VBAT_RTC	37	VO_LCDC_VSYNC_3V3	38	GPIO3_B6_D
39	MIPI_CSI_RX1_CLK1N	40	I2C3_SDA_CAM	39	VO_LCDC_CLK_3V3	40	GPIO3_B7_D
41	MIPI_CSI_RX1_CLK1P	42	I2C3_SCL_CAM	41	GND	42	UART2_TX_BT
43	MIPI_CSI_RX1_D2N	44	MIPI_CSI_RX0_D0N	43	FEPHY_RXN	44	UART2_RX_BT
45	MIPI_CSI_RX1_D2P	46	MIPI_CSI_RX0_D0P	45	FEPHY_RXP	46	UART2_RTSN_BT
47	UART4_RTSN_M0	48	MIPI_CSI_RX0_D1N	47	FEPHY_TXN	48	UART2_CTSN_BT
49	UART4_CTSN_M0	50	MIPI_CSI_RX0_D1P	49	FEPHY_TXP	50	CAN0_RXD_M0_3V3
51	MIPI_MCLK_OUT1	52	MIPI_CSI_RX0_D3N	51	GND	52	CAN0_TXD_M0_3V3
53	GND	54	MIPI_CSI_RX0_D3P	53	MIPI_DSI_D0N	54	GND
55	MIPI_MCLK_OUT0	56	MIPI_CSI_RX0_D2N	55	MIPI_DSI_D0P	56	PCM_RX
57	GPIO7_A5_D	58	MIPI_CSI_RX0_D2P	57	MIPI_DSI_D1N	58	PCM_CLK
59	GPIO7_A3_D	60	MIPI_CSI_RX0_CLK0N	59	MIPI_DSI_D1P	60	PCM_TX
61	GPIO7_A4_D	62	MIPI_CSI_RX0_CLK0P	61	GND	62	PCM_SYNC
63	GPIO7_A2_D	64	GND	63	MIPI_DSI_CLKN	64	SDIO_D2
65	GPIO7_A6_D	66	UART4_RX_M0	65	MIPI_DSI_CLKP	66	SDIO_D3
67	GPIO7_A7_D	68	UART4_TX_M0	67	MIPI_DSI_D2N	68	SDIO_CMD
69	DSM_AUD_RN	70	I2C4_SDA_CAM	69	MIPI_DSI_D2P	70	GND
71	DSM_AUD_RP	72	I2C4_SCL_CAM	71	MIPI_DSI_D3N	72	SDIO_CLK
73	GPIO0_C5_D	74	UART0_RX_DBG	73	MIPI_DSI_D3P	74	SDIO_D0
75	CLK_32K_OUT	76	UART0_TX_DBG	75	GND	76	SDIO_D1
77	GND	78	I2C2_SCL_M0_3V3	77	VO_LCDC_D13_3V3	78	GND
79	USB3_DRD_SSRXN	80	I2C2_SDA_M0_3V3	79	VO_LCDC_D10_3V3	80	SARADC0_IN5
81	USB3_DRD_SSRXP	82	SPK_CTRL	81	VO_LCDC_D12_3V3	82	SARADC0_IN6
83	GND	84	BT_WAKE_3V3	83	VO_LCDC_D09_3V3	84	SARADC0_IN4
85	USB3_DRD_SSTXN	86	BT_WAKE_HOST_3V3	85	VO_LCDC_D06_3V3	86	SARADC0_IN2
87	USB3_DRD_SSTXP	88	SDMMC0_DET	87	VO_LCDC_D07_3V3	88	SARADC0_IN3
89	GND	90	WIFI_REG_ON_3V3	89	VO_LCDC_D08_3V3	90	SARADC0_IN1
91	USB2_HOST_DP	92	WIFI_WAKE_HOST_3V3	91	VO_LCDC_D14_3V3	92	SARADC0_IN0_KEY
93	USB2_HOST_DM	94	BT_RST_3V3	93	VO_LCDC_D15_3V3	94	GND
95	USB2_DRD_VBUSDET	96	GND	95	VO_LCDC_D16_3V3	96	CAN1_RXD_M0_3V3
97	USB2_DRD_ID	98	USB2_DRD_DP	97	GND	98	CAN1_TXD_M0_3V3
99	GPIO0_A3_U	100	USB2_DRD_DM	99	SDMMC0_PWREN	100	VCC_3V3

OS	Item	Feature	Description
Debian 12 Buildroot	Boot	U-Boot 2017.09	rv1126b_ddr_1332MHz_v1.09.bin
	Kernel	Version	Linux 6.1.141
	Drivers	eMMC	eMMC 4.51
		Serial port	1x Debug serial, 1x UART
		RTC	Support
		Ethernet	10/100Mbps Ethernet
		RS485	Support
		CAN	Support
		RTC	Support
		SPI	Support
		WiFi & Bluetooth	Wireless - 2.4GHz, 802.11b/g/n Bluetooth4.2
		USB Host	4x USB2.0 Host
		USB OTG & USB3.0	OTG function must be switched manually
		LCD	MIPI LCD, 1280 x 800
		IR	Support
		Audio I/O	RV1126B Built-in Codec. MIC IN and Speaker.
		SD	Micro SD
		GPIO	Support
		ADC	6x ADC in
		Camera	2x MIPI Camera
		Battery Fuel Gauge	CW2217
	Cross-compiler Environment	Ubuntu 22.04
	Debug tools	SecureCRT, RKDevTool.exe
