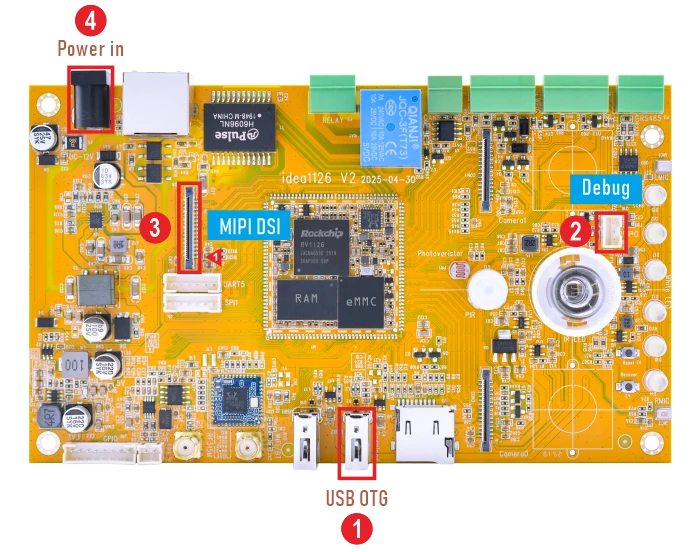

2. Quick Setup

❶ Connect USB-A cable between host PC and Idea1126B-P USB OTG port.

❷ Plug the USB-to-UART cable between PC and Idea1126B-P console connector.

❸ On the host PC, start a terminal emulation program (such as SecureCRT) with the following serial port settings:

BaudRate	Data Bits	Stop Bits	Parity	Flow Control
1500000	8	1	None	None

❹ Connect the board and 10.1-inch MIPI LCD.

❺ Plug the 12V/3A power supply into the DC jack, Idea1126B-P will turn on and boot into system.
