2. Flash Images

Environment: Windows OS

❶ Open SocToolKit\SocToolKit.exe. In the Chip Selection dialog box, keep the default chip option RV1126B, and then click OK.

_images/IPC_SocToolKit.png

❷ Enter MaskRom mode

_images/IPC_Found_maskrom_Device.png

❸ Click Firmware, select update.img. Click Upgrade to flash.

_images/IPC_Upgrade.png

After the flashing is complete, the board will automatically reboot.

User can also update the firmware separately.

❶ Enter MaskRom mode

❷ Right-click the blank area in the image list and select Create items by env|parameter

_images/IPC_firmware_separately-1.png

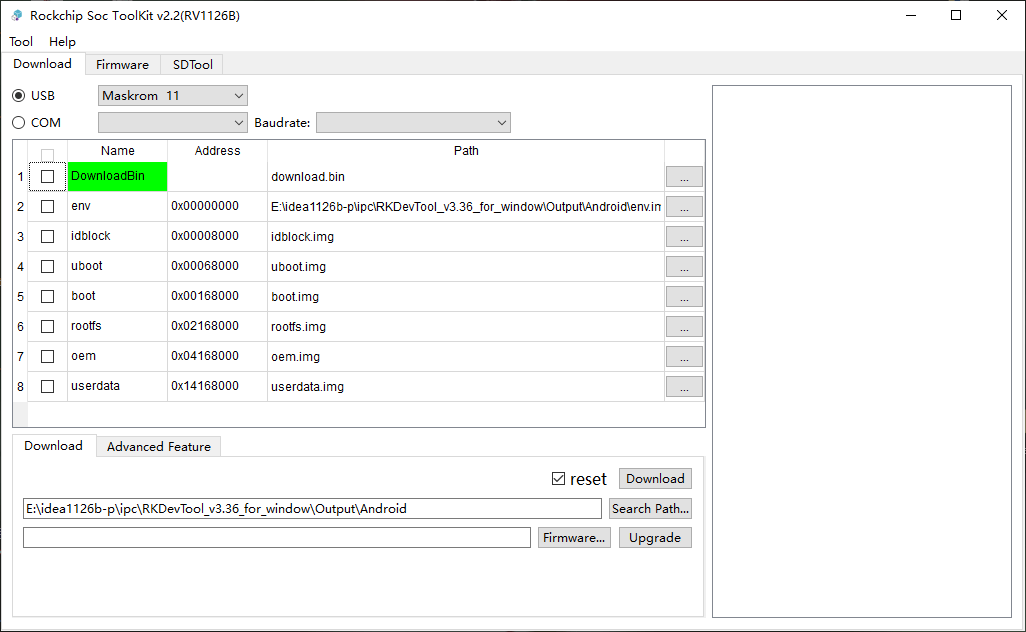

In the file selection window, select the file env.img from the separate image firmware directory. SocToolKit will automatically generate the flashing items and load the corresponding partition names, addresses, and image paths.

_images/IPC_firmware_separately-2.png

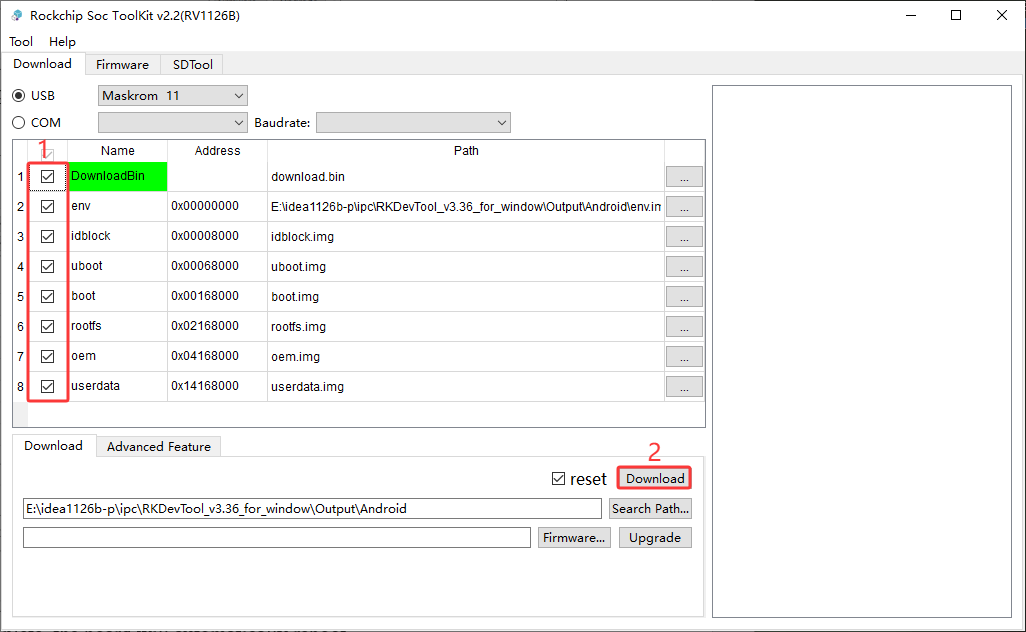

❸ Select the required image items to be flashed, and then click Download to start flashing the separate image firmware.

_images/IPC_firmware_separately-3.png

Note

When flashing separate images, make sure that DownloadBin is selected. Otherwise, the flashing process may fail.
