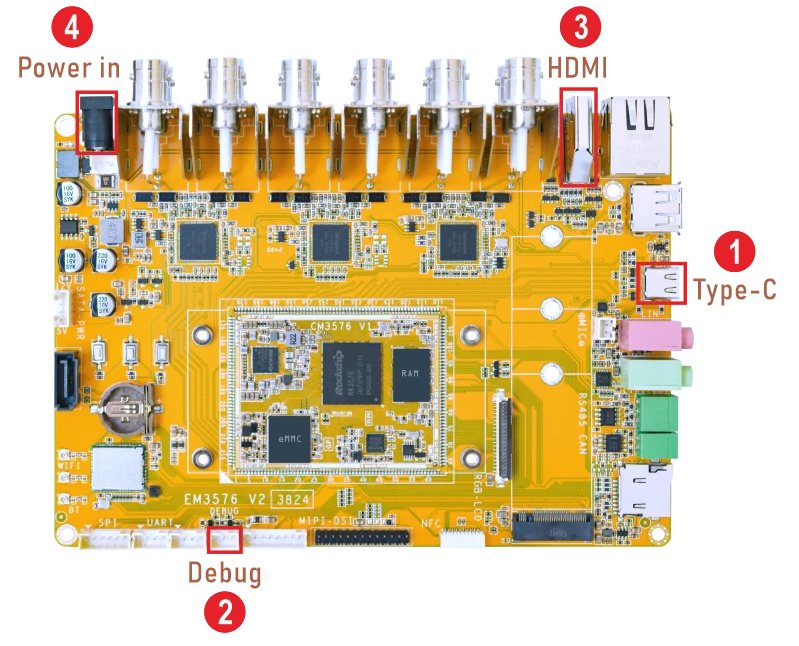

2. Quick Setup

❶ Connect the USB Type-C cable from the host PC to the USB-C port on the EM3576.

❷ Connect the USB-to-UART cable from the host PC to the Debug port on the board.

On the host PC, start a terminal emulation program (such as SecureCRT) with the following serial port settings:

BaudRate	Data Bits	Stop Bits	Parity	Flow Control
1500000	8	1	None	None

❸ Connect the board and monitor with a HDMI cable.

❹ Plug the 12V/3A power supply into the DC jack, and the EM3576 will turn on and boot into the system.
