1 Configuration List
Part |
Description |
|---|---|
EM3576 |
EM3576 SBC, built-in WIFI&BT module, without RTC battery and panel |
Power adapter |
12V/3A |
USB Type-C cable |
Used to download |
Serial adapter module |
USB-to-UART |
Ethernet cable |
1.5M Ethernet crossover cable |
WiFi Antenna |
Flexible uFL 2.4GHz antenna |
U-disk |
User manuals, Schematics, Images, etc. |
2 Accessories (optional)
Panel
Item |
Parameter |
|---|---|
Model |
K101-IM2KYL02-L3 |
Display interface |
MIPI |
Resolution |
800 x 1280 |
Number of colors |
16.7M |
Display mode |
Normally Black |
Pixel arrangement |
RGB Vertical stripe |
10.1-inch MIPI LCD
Camera
Item |
Parameter |
|---|---|
Model |
SW-MA2024HP |
Sensor |
1/3” 2 Mega Pixels CMOS |
Power supply |
DC12V±10% |
Signal |
PAL/NTSC |
Interface |
BNC |
Pixels |
2 megapixel (1920 x 1080) |

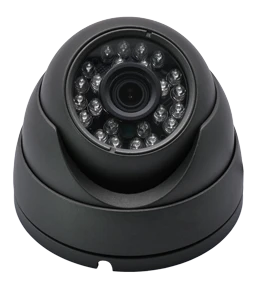

AHD Camera
