Compact3128

* Processor: Rockchip RK3128, Quad Core Cortex-A7 @1.2GHz
* RAM: 512MB
* Flash: 4GB eMMC

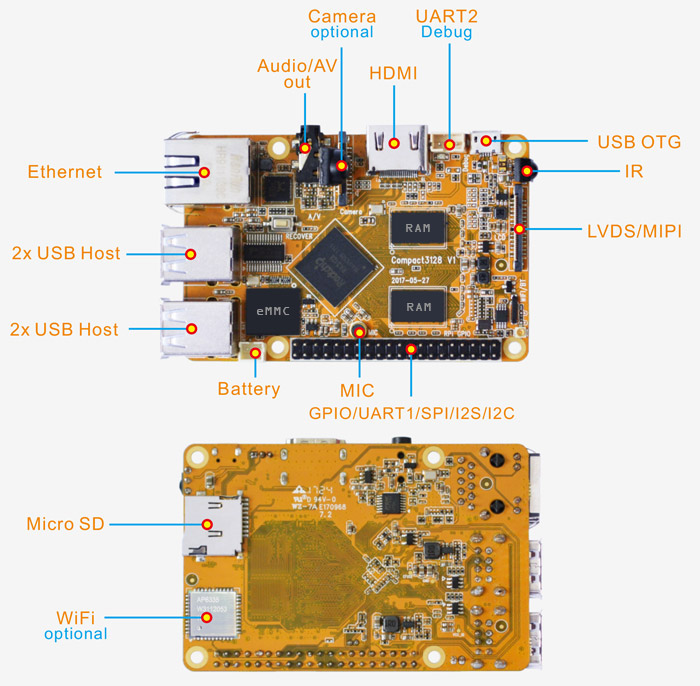

* Interfaces: 4x USB Host, 1x USB OTG, 1x debug connector, LCD(LVDS/MIPI), Ethernet, HDMI, Audio/CVBS(AV) out, SD, GPIO, Camera, battery connector
* Operating system: Android6.0
* Board size: 85mm x 56mm


Compact3128 is designed with the more power efficient Rockchip RK3128 Cortex A7 processor compared with RK3288.
RK3128 is a Quad-core application processor for smart TV-Box. Especially it is a high-integration and cost efficient SOC for 1080P H.265 TV-Box. Quad-core Cortex-A7 is integrates with separately Neon and FPU coprocessor, also shared 256KB L2 Cache. Mali400 MP2 GPU is embedded to support smoothly high-resolution (1080p) display and mainstream game. Lots of high-performance interface to get very flexible solution, such as multi-pipe display with HDMI1.4, TV Encoder.
Compact3128 comes with 512MB RAM, 4GB eMMC Flash, Gigabit Ethernet, Wi-Fi and Bluetooth, and various other ports and expansion headers. And besides a data link, the USB2.0 OTG also provides 5V to power the board. Compact3128 is especially suitable for applications that must be contained in a limited space control systems, such as medical, IoT gateway, imaging and Industrial control systems.
