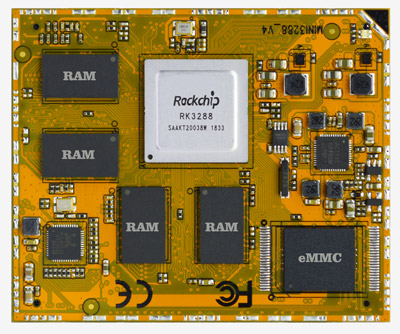

MINI3288

* Processor: Rockchip RK3288, Quad Core Cortex-A17 @1.8GHz
* RAM: 2GB
* NAND Flash: 8GB eMMC
* Pin out: USB Host, USB OTG, LCD, Serial, Gigabit Ethernet, VGA, HDMI, Audio, SD/MMC/SDIO, SPI, I2C, I2S, ADC, etc.
* Operating system: Android4.4.4, Android5.1, Ubuntu
* Board size: 70mm x 58mm
* Compatible module: MINI3066, MINI4418
* CE Certification, CE-EMC Report, FCC Certification, FCC-VOC Report

    EM3288

RK3288 Module - MINI3288

MINI3288 is a Computer-on-module (CoM) based on Rockchip RK3288 SoC. Integrate quad-core Cortex-A17 with separately Neon and FPU coprocessor , also shared 1MB L2 Cache. Support real 4Kx2K video decoder, 3D GPU processor with OpenGL ES3.0, OpenCL1.1 and DirectX11. It is a high performance application module for high-end tablet, notebook, all-in-one device, smart monitor and TV-Box.

Rockchip RK3288 Advantage Features

The first SoC with real 4Kx2K video decoder.
The first SoC with total solution for HDCP2.x security.

RK3288 is a high performance application processor for high-end tablet, notebook, all-in-one device , smart monitor and TV-Box. Especially it is one of most powerful solution for 4Kx2K TV-Box.
Integrate quad-core Cortex-A17 with separately Neon and FPU coprocessor, also shared 1MB L2 Cache. More than 32bits address will support up to 8GB access space.
Currently, latest generation and most powerful GPU is embedded to support smoothly high-resolution (3840x2160) display and mainstream game. Support OpenVG1.1, OpenGL ES1.1/2.0/3.0, OpenCL1.1, RenderScript and DirectX11 etc.

Full-format video decoder, including 4Kx2K multi-format decoder.

Lots of high-performance interface to get very flexible solution, such as multi-pipe display with dual-channel LVDS, dual-channel MIPI-DSI, eDP1.1, HDMI2.0, dual-channel MIPI-CSI2 interface with 13MP ISP embedded.
Fully-integrated hardware-based security solution will provide HDCP2.x for miracast and all kinds of DRM solution based on different OS.
Dual-Channel 64bits DDR3/LPDDR2/LPDDR3 provide demanding memory bandwidths for high-performance and high-resolution application.

CPU

Quad-Core Cortex-A17
Separately Integrated Neon and FPU per CPU
32KB/32KB L1 ICache/DCache per CPU
Unified 1MB L2 Cache
LPAE (Large Physical Address Extensions), support up to 8GB address
Space Virtualization Extensions Support
DVFS support

GPU

- 3D GPU
Quad-Core Mali-T7 series, latest powerful graphics processor
Architected for GPU computing
Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript, Directx11
DVFS support

- 2D GPU
Multi-Core architecture
Up to 8Kx8K input and 4Kx4K
Output High-quality image scale
Up/down Dither operation
Image rotation with 90/180/270 degree or x/y-mirror BitBLT, Alpha Blending, Raster Operation

VPU

- Video Decoder
Support MPEG-2, MPEG-4, AVS, VC-1, VP8, MVC with up to 1080p@60fps
Support multi-format video decoder with up to 4Kx2K
High-quality deinterleave

- Video Encoder
Support muti-format video encoder with up to 1080p@30fps

- Video Input
Dual-channel input for front and rear camera
Dual-channel MIPI-CSI2 interface with 4-lane per channel
8/10/12 bits standard DVP interface
Maximum 5Mpixel for front camera
Maximum 13Mpixel for rear camera with high-performance ISP

- Video Display
Dual-panel display with 2 separately interface
Maximum resolution is 4Kx2K
CABC support to decrease interface power
Dual channel 8/10bits LVDS
Dual channel MIPI-DSI
HDMI2.0 to support maximum 4Kx2K display
Optional eDP1.1 interface
