MINI3566

* 处理器: Rockchip RK3566. Quad-core Cortex-A55, 1.8GHz
* NPU: 1 TOPS
* 内存: 2GB/4GB
* 存储: 8GB/16GB/32GB/64GB/128GB
* 引出信号: 4x UART, Debug, USB3.0 Host, 2x USB2.0 Host, USB2.0 OTG, LVDS, MIPI DSI, eDP, MIPI CSI, HDMI, Ethernet, PCIe2.1/SATA, 2x SDMMC, VOP, CIF, I2C, SPI, PWM, ADC, I2S, SPDIF, GPIO, etc.
* 操作系统: Debian 12, Buildroot
* 尺寸规格: 55 x 45 mm
* 连接方式: 板对板连接。3x 80-pin, 0.5mm间距板对板连接器
* 工作温度: 0° to + 80° C

产品简介
硬件
软件
下载
订购
常见问题

MINI3566 核心板基于瑞芯微 RK3566 处理器设计，搭载四核 64 位 Arm Cortex-A55 CPU，主频 1.8GHz，采用 22nm 工艺，兼具高效能与低功耗。内置 1 TOPS NPU，支持 TensorFlow、PyTorch 等主流 AI 框架，可运行人脸识别、目标检测等轻量级 AI 推理任务。核心板提供 2GB/4GB DDR3L 内存与 8GB~128GB eMMC 存储配置。通过标准B2B 连接器引出丰富接口，包括：USB3.0 Host、千兆以太网、PCIe2.1/SATA（支持高速存储扩展）、多种显示支持（HDMI 4K 输出、eDP、LVDS、MIPI DSI），以及 I2C、SPI、UART、GPIO 等常用控制总线，可灵活适配各类外设与屏幕。凭借强劲算力、AI 加速能力与多样化接口，MINI3566 广泛适用于工业 HMI 与控制器、物联网网关、边缘计算节点、智能安防 NVR、商显数字标牌、云终端及医疗显示等应用场景。

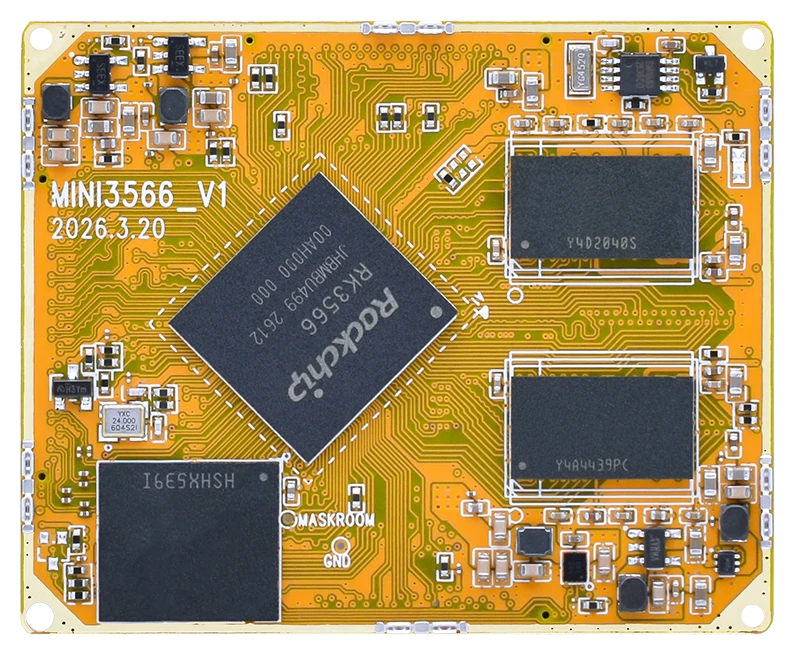

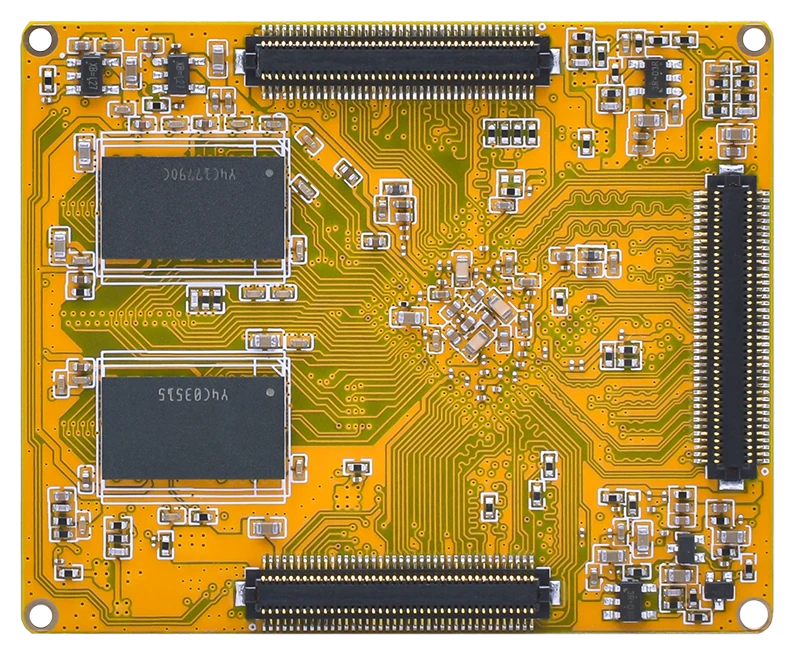

MINI3566-V1_F MINI3566-V1_R

规格参数
SoC	Rockchip RK3566. Quad-core Cortex-A55 up to 1.8GHz
GPU	Mali-G52 GPU. Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU	1 TOPS
VPU	4096x2304@60fps H.265/H.264/VP9 video decoder 1920x1088@60fps VP8/VC1/MPEG-4,2,1 video decoder 1080P@60fps H.264/H.265 video encoder
内存	2GB/4GB DDR3L
存储	8GB/16GB/32GB/64GB/128GB
工作电压	DC 3.3V
引出信号	4x UART, Debug, USB3.0 Host, 2x USB2.0 Host, USB2.0 OTG, 2x MIPI DSI(or 1x MIPI DSI, 1x LVDS), eDP, MIPI CSI, HDMI, Ethernet, PCIe2.1/SATA, 2x SDMMC, VOP, CIF, 2x I2C, 2x SPI, 3x PWM, 3x ADC, 2x I2S, SPDIF, GPIO, etc.
网络	Gigabit RGMII (GMAC)
PCB Layer	8
尺寸规格	55 x 45 mm
重量	12.3 gram
连接器	3x 80-pin, 0.5mm pitch Board-to-Board Connectors (Receptacle)
应用	industrial HMI and controllers, IoT gateways, intelligent surveillance NVRs, commercial digital signage, and medical display applications

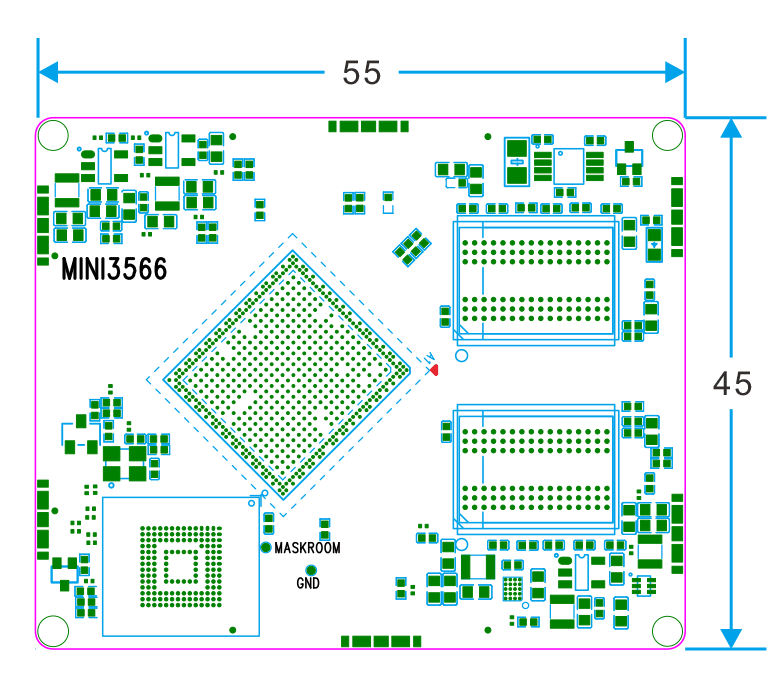

PCB 尺寸图

引脚定义

Pin J1	Signal	Pin J2	Signal	Pin J3	Signal
1	GMAC1_TXD3_M0	1	EDP_TX_D0P	1	VCC5V_SYS
2	GPIO3_A1	2	USB_OTG0_VBUSDET	2	VCC5V_SYS
3	GMAC1_TXD2_M0	3	EDP_TX_D0N	3	VCC5V_SYS
4	GMAC1_TXD0_M0	4	USB_OTG0_ID	4	VCC5V_SYS
5	GMAC1_RXD2_M0	5	EDP_TX_D1P	5	GND
6	GMAC1_TXCLK_M0	6	GND	6	GND
7	GMAC1_RXD3_M0	7	EDP_TX_D1N	7	SARADC_VIN2_HP_HOOK
8	GMAC1_TXEN_M0	8	USB_OTG0_DP	8	SARADC_VIN1
9	GMAC1_RXD0_M0	9	EDP_TX_D2P	9	SARADC_VIN3
10	ETH1_REFCLK0_25M_M0	10	USB_OTG0_DM	10	SARADC_VIN0_KEY/RECOVERY
11	GMAC1_RXD1_M0	11	EDP_TX_D2N	11	GND
12	GMAC1_TXD1_M0	12	USB3_HOST1_DM	12	GND
13	GMAC1_RXDV_CRS_M0	13	EDP_TX_D3N	13	SPDIF_TX_M2
14	GMAC1_RXCLK_M0	14	USB3_HOST1_DP	14	I2S2_LRCK_TX_M0
15	GND	15	EDP_TX_D3P	15	GPIO0_A3_u
16	GND	16	USB3_HOST1_SSRXN	16	I2S2_SDI_M0
17	GPIO3_C1	17	EDP_TX_AUXN	17	PWM5
18	GMAC1_MCLKINOUT_M0	18	USB3_HOST1_SSRXP	18	I2S2_SCLK_TX_M0
19	UART5_TX_M1	19	EDP_TX_AUXP	19	LCD_BL_PWM
20	GND	20	USB3_HOST1_SSTXN	20	I2S2_SDO_M0
21	UART5_RX_M1	21	GND	21	LCD_PWREN_H
22	GPIO3_B4	22	USB3_HOST1_SSTXP	22	GND
23	SPI0_CLK_M0	23	RESETn	23	I2C1_SDA
24	CIF_8BIT_D1	24	GND	24	GPIO2_B2_u_1V8
25	SPI0_MISO_M0	25	HDMITX_SCL	25	I2C1_SCL
26	CIF_8BIT_D0	26	PCIE20_SATA2_TXP	26	GPIO2_B7_d_1V8
27	SPI0_CS0_M0	27	HDMITX_SDA	27	GND
28	CIF_8BIT_D2	28	PCIE20_SATA2_TXN	28	GPIO2_B1_d_1v8
29	SPI0_MOSI_M0	29	HDMITX_CEC_M0	29	UART3_TX_M0
30	CIF_8BIT_D7	30	PCIE20_SATA2_RXN	30	GPIO2_C0_d_1V8
31	PWM0_M0	31	GND	31	UART3_RX_M0
32	CIF_8BIT_D5	32	PCIE20_SATA2_RXP	32	GPIO2_C1_d_1V8
33	SPI3_MOSI_M1	33	HDMI_TX2P	33	GND
34	CIF_8BIT_D4	34	PCIE20_REFCLKN	34	GPIO2_C6_d_1V8
35	SPI3_CLK_M1	35	HDMI_TX2N	35	I2S1_MCLK_M0_PMIC
36	CIF_8BIT_D3	36	PCIE20_REFCLKP	36	GND
37	SPI3_MISO_M1	37	HDMI_TX1P	37	I2S1_SCLK_TX_M0_PMIC
38	CIF_8BIT_D6	38	GND	38	GPIO1_D4_u_1V8
39	SPI3_CS0_M1	39	HDMI_TX1N	39	I2S1_LRCK_TX_M0_PMIC
40	CIF_8BIT_VSYNC	40	UART2DBG_TX	40	PCIE20_CLKREQn_M2
41	VOP_BT656_D1_M1	41	HDMI_TX0P	41	I2S1_SDO0_M0_PMIC
42	CIF_8BIT_CLKIN	42	UART2DBG_RX	42	UART4_RX_M0
43	VOP_BT656_D0_M1	43	HDMI_TX0N	43	GND
44	GND	44	HDMI_TX_HPDIN	44	I2S1_SDI0_M0/PDM_SDI0_M0_PMIC
45	VOP_BT656_D2_M1	45	HDMI_TXCLKP	45	PCIE20_PERSTn_M2
46	CIF_CLKOUT	46	GND	46	UART4_TX_M0
47	VOP_BT656_D3_M1	47	HDMI_TXCLKN	47	PCIE20_WAKEn_M2
48	GND	48	MIPI_DSI_TX0_CLKP/LVDS_TX0_CLKP	48	GPIO1_D0_d_1V8
49	VOP_BT656_D4_M1	49	MIPI_DSI_TX1_D0P	49	GPIO0_A0_d
50	GMAC1_MDC_M0	50	MIPI_DSI_TX0_CLKN/LVDS_TX0_CLKN	50	GPIO1_D1_d_1V8
51	VOP_BT656_D5_M1	51	MIPI_DSI_TX1_D0N	51	GPIO0_D4_1v8
52	GPIO4_A7_d_1V8	52	MIPI_DSI_TX0_D0P/LVDS_TX0_D0P	52	GPIO1_D3_u_1V8
53	GPIO4_A6_d_1V8	53	MIPI_DSI_TX1_D1P	53	GPIO0_D5_1v8
54	GMAC1_MDIO_M0	54	MIPI_DSI_TX0_D0N/LVDS_TX0_D0N	54	GPIO1_D2_u_1V8
55	VOP_BT656_D7_M1	55	MIPI_DSI_TX1_D1N	55	GND
56	GPIO4_B0_d_1V8	56	MIPI_DSI_TX0_D1P/LVDS_TX0_D1P	56	GND
57	VOP_BT656_D6_M1	57	MIPI_DSI_TX1_D2P	57	SDMMC0_DET_L
58	CIF_8BIT_HREF	58	MIPI_DSI_TX0_D1N/LVDS_TX0_D1N	58	SDMMC1_D3
59	VOP_BT656_CLK_M1	59	MIPI_DSI_TX1_D2N	59	GPIO0_A5_d
60	GND	60	MIPI_DSI_TX0_D2P/LVDS_TX0_D2P	60	SDMMC1_D0
61	GPIO4_B1_d_1V8	61	MIPI_DSI_TX1_D3P	61	GPIO0_A6_d
62	USB2_HOST3_DP	62	MIPI_DSI_TX0_D2N/LVDS_TX0_D2N	62	SDMMC1_D1
63	I2C4_SDA_M0_1V8	63	MIPI_DSI_TX1_D3N	63	PWM3_IR
64	USB2_HOST3_DM	64	MIPI_DSI_TX0_D3P/LVDS_TX0_D3P	64	SDMMC1_D2
65	I2C4_SCL_M0_1V8	65	MIPI_CSI_RX_D0P	65	GND
66	USB2_HOST2_DP	66	MIPI_DSI_TX0_D3N/LVDS_TX0_D3N	66	SDMMC1_CMD
67	GPIO4_B5_d_1V8	67	MIPI_CSI_RX_D0N	67	SDMMC0_CLK
68	USB2_HOST2_DM	68	GND	68	GND
69	VCC_RTC	69	MIPI_CSI_RX_D1P	69	GND
70	GND	70	MIPI_DSI_TX1_CLKP	70	SDMMC1_CLK
71	VCC_3V3	71	MIPI_CSI_RX_D1N	71	SDMMC0_D2
72	VCC_1V8	72	MIPI_DSI_TX1_CLKN	72	GND
73	PMIC_32KOUT_SOC	73	MIPI_CSI_RX_D2P	73	SDMMC0_D0
74	GND	74	MIPI_CSI_RX_CLK0P	74	UART1_RX_M0
75	GND	75	MIPI_CSI_RX_D2N	75	SDMMC0_CMD
76	GND	76	MIPI_CSI_RX_CLK0N	76	UART1_RTSn_M0
77	VCC5V_SYS	77	MIPI_CSI_RX_D3P	77	SDMMC0_D3
78	VCC5V_SYS	78	MIPI_CSI_RX_CLK1N	78	UART1_TX_M0
79	VCC5V_SYS	79	MIPI_CSI_RX_D3N	79	SDMMC0_D1
80	VCC5V_SYS	80	MIPI_CSI_RX_CLK1P	80	UART1_CTSn_M0

OS	Item	Feature	Description
Debian 12 Buildroot	Boot	U-Boot 2017.09	rk356x_spl_loader_v1.25.114.bin
	Kernel	Version	Linux 6.1.141
	Drivers	eMMC	Support eMMC 5.1
		HDMI	HDMI2.0, up to 4096x2304@60Hz
		MIPI+TP	2x MIPI DSI. 800x1280@60Hz
		LVDS+TP	1x LVDS. 1280x800@60Hz
		eDP	eDP1.3. 1920x1200@60Hz
		Audio	Headphone input/output 2x Speaker
		SD card	Micro SD card
		USB Host	4x USB2.0 Host
		USB3.0	USB3.0 Host
		USB OTG	USB2.0 OTG
		Key	Recovery, Reset
		4G&GPS	EM05
		SSD	NVMe SSD
		Ethernet	10/100/1000 Mbps Ethernet
		Camera	2x Camera. OV13850 module, 13 Megapixels
		WiFi	Wireless - 2.4GHz 802.11 b/g/n
		Bluetooth	Bluetooth 4.2
		Serial port	2x UART, 1x debug
		RS485	Support
		RTC	HYM8563TS
		IR	Support
		ADC	Support
	Cross-compiler Environment	Ubuntu 22.04
	Debug Tools	SecureCRT, AndroidTool.exe, ADB
